Euro 5 socket charging adapter O-77

Euro 5 diagnostic socket adapter O-77

BATTERY ADAPTER > EURO5 BATTERY CHARGE ADAPTER

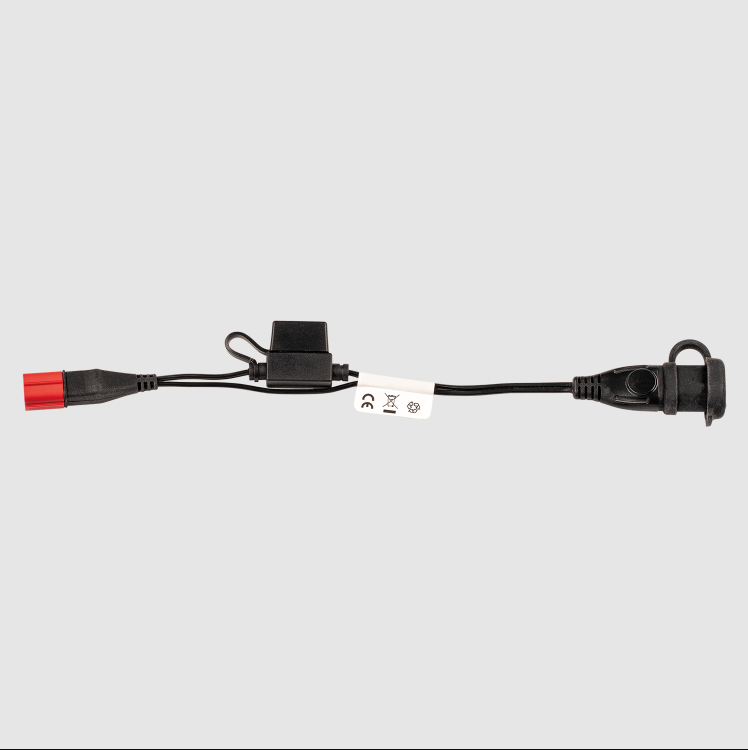

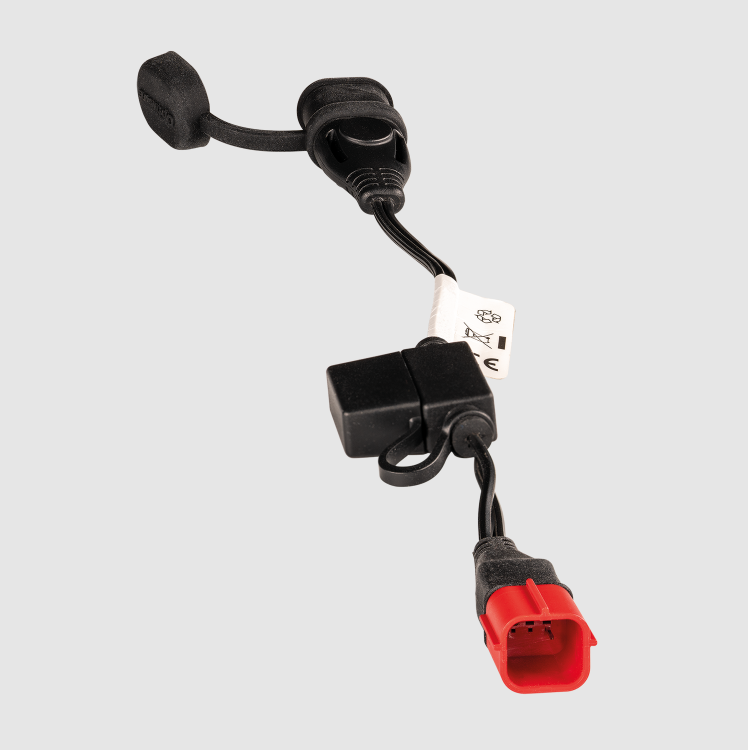

PURPOSE - Adapts EURO5 6-pin diagnostic connector on motorcycle to an SAE 2-pin charge connector.
FITS - models using Euro 5 diagnostic connector introduced from ~ 2021 on. Please check your bike for compatibility.

PROTECTED - 7.5A ATO fuse
WEATHERPROOF - SAE connector fully protected by sealing cap.
EASY MOUNT – zip-tie loops on SAE connector

Fits the 6-pin diagnostic connector on 2021+ Euro 5 spec motorcycles.

OptiMate heavy duty SAE connector works with all standard 2-pin SAE battery charger connectors.

Premium specifications – 40cm (16”) length, 7.5A fuse, rated for 3A (5A max) current, ziptie securing slots on SAE connector

MORE FEATURES:

Rubber seal protects SAE connection against dirt and water, keeping the SAE connection clean.

Thicker insulation for better protection.

Current rating: 3A ave. / 5A max.

Rated for normal T° and outdoor use.
