USB charger O-108 - V2

V2 version.

Also suitable for LiFePo4 Batteries!

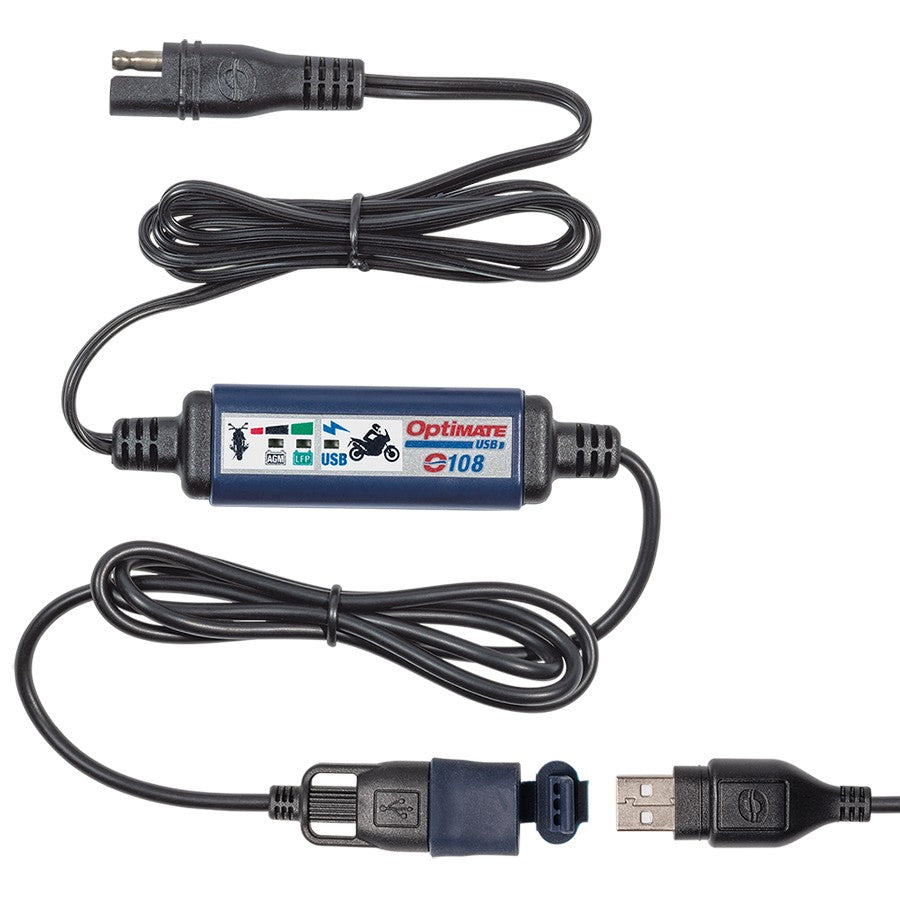

The fully sealed in-line SAE to USB 3300mA charger with 200cm / 80″ of cable, delivers safe and fast USB charging to you phone or other device that needs charging, either on the handlebar or inside your tankbag or pannier – Charge cable routes to where USB charging is needed!

• Connects to battery lead with OptiMate O-01 (NOT INCLUDED) SAE 2-pin connector – In-line seal makes 12V connection weatherproof!
• Charges 1x USB device with up to 3300mA current available (or get optional O-110 USB splitter and charge 2 devices). – Charge current adapts to connected device for safe recharging.

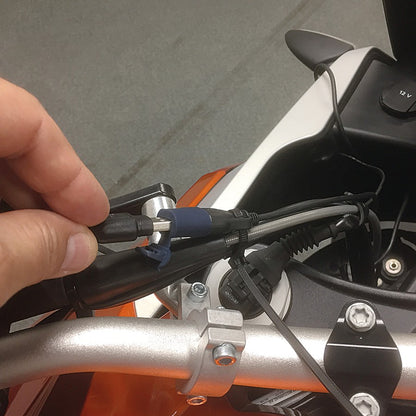

• Weatherproof USB charge port easily zip-tie to handlebar, strut or even brake / clutch cable – Seals against inserted USB cable for charging in any weather!
• Built in protection turns off USB charging & prevents your parked vehicle’s LFP (LiFePO4) or AGM (Pb) battery from draining – Starts back up when vehicle engine fires up.
• Monitors and displays parked vehicle’s battery status – Indicates battery is ‘start ready’ at the blink of an LED!
• Smart 3300mA USB charger, with standby mode & vehicle battery monitor.

Charge your phone, GPS, camera & tablet with your weatherproof charger, on your motorcycle or up to 80″ / 200cm away from 12V supply.

LENGTH: 80″ / 200cm

CHARGE CONNECTOR (INPUT): 2-pin SAE

POWER (INPUT): Vehicle 12V system with 12V lead-acid or 12.8V lithium battery.

CHARGE CONNECTOR (OUTPUT): 1x USB

POWER (OUTPUT): 3300mA @ 5V

OPERATION:  fully automatic

• Vehicle battery protection: Low input (<12.4V) auto-off protects vehicle battery from total discharge. Supply range: 12.4 to 16Vdc.
• Turns on if vehicle battery voltage increases above 13.3V.
• 2 LED battery monitor
• Short circuit, overheat, over-voltage protection.

OPERATION (Voltage)

• USB ON – 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery.

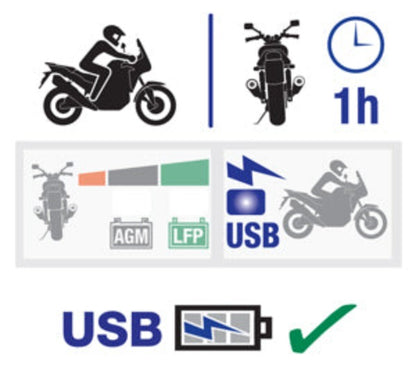

• USB 1 HOUR – 12.4V to 13.3V – 1 hour USB output, USB LED on. Go to standby mode after 1 hour or voltage < 12.4V.
• STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V.

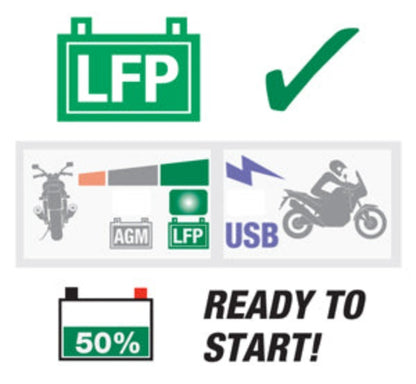

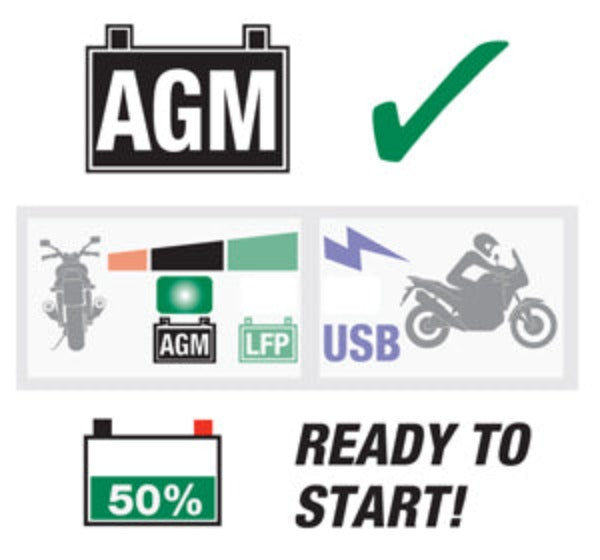

• AGM / LFP MONITOR – LED blink every 5 seconds if battery charge ≥ 50% , sufficient to start vehicle engine.
  • LED LFP: 13.1V to 13.3V.
  • LED AGM: 12.4V to 13.1V.
  • NO LED < 12.4V.
• OFF ≤ 9V

CABLE RATING: SPT-1

USE: -20°C/-4°F very low temperature, remains flexible at ‘below freezing’ temperatures

STYLE: Fully enclosed electronic circuitry with multiple LEDs, unique seal and cap design for USB socket ; use any USB cable, seals when inserted.

WARRANTY: 3-year limited replacement warranty
